SpectraCAM 84：耐放射線カメラ／ハイダイナミックレンジカメラ(レーザービームプロファイル・理化学研究開発／分光学・天文分野・バイオイメージング）｜ThermoFisherScientific社

ハイダイナミックレンジカメラ（CID）

　●　CID （Charge Injection Device)

　●　GdO₂SコーティングでX線イメージング可能

　●　幅広い感度領域165-1000nm

　●　ハイダイナミック28bit

　●　ノンディストラクティブリードアウト（NDRO)

■　仕様
【カタログ】　　※新しいウィンドウが開きます　●　ハイダイナミックレンジカタログ　（和文：267KB）　更新日：2012.1 　●　SpectraCAM 84カタログ　（英文：749KB）　更新日時：2012.1

【仕様表】 SpectraCAM86 and SpectraCAM84 scientific imaging sysytems

Imager		Pixel Full Well
CID86：　CID84：	540 x 540 pixels 1024x1024 pixels	>500, 000 e- >500, 000 e-

Readout Noise		Binning
<240 e- single read @ 50kHz 　<24 e- with 128 NDRO' s		Independent horizontal and vertical columns and 4 rows may be read collectively and Non destructively (NDRO).

Pixel Size		Dark Current
27microns by 27 microns		<7 e- per second per pixel at -45

Linearity		ROI
+/- 3% from 3% to 80% of saturation		<20usec. delay between ROI selection

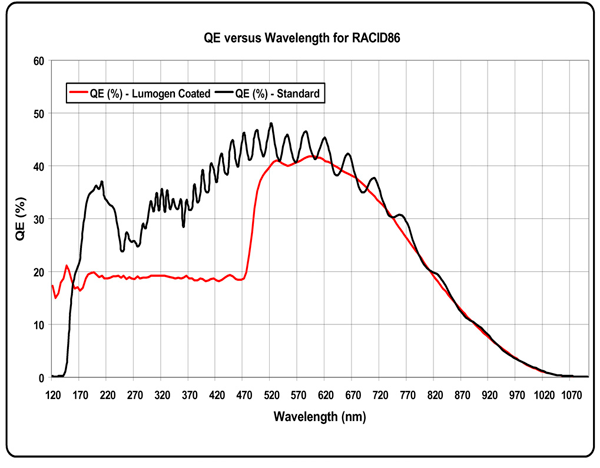

Quantum Efficiency		Cooling
>45% @ 550nm and >30% @ 200nm *Deep UV and X-Ray converter coatings available for use below 165nm		3 stage TE cooler with water recirculation

Readout Speed Selectable		Sealed, (SpectraCAM84 only)
Slow Scan 50 kHz Fast Scan 200kHz		Hermetic sealed 3 years, Integrated water jacket
		Purge
		Purified Argon or Nitrogen at 60 - 80 mL/min

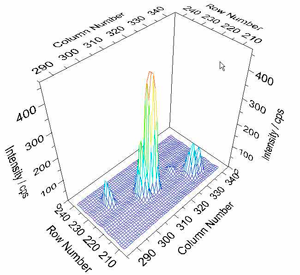

RAI (Random Access Integration) Software Drivers Fixed Exposure Time: User programmed ROIs integrated for user-selected exposure time analogous to CCD exposure. Random Access Integration: Integration time automatically varied at ROI site based on experimentally observed signal. Using non-Destructive read, collective read, and ROI clear features, intensely illuminated ROIs are integrated for multiple short integration times while weakly illuminated ROIs are simultaneously allowed to integrate for longer periods, allowing for the extension of the dynamic range up to 108 or 28 bits.

TRS (Time Resolve) Software Drivers (OPTIONAL) TRS Drivers allow for the observation of ROI signal profile with respect to time for multiple ROIs. The algorithms allow user programmable time resolution as short as 100 microseconds for a single ROI. The algorithms are specifically designed for time-resolved techniques such as gas and liquid chromatography, flow injection analysis, and laser or spark ablation.

AutoIntegrate Drivers (OPTIONAL) AutoIntegrate drivers allow the user to automatically combine the complete field of view offered by a full-frame “Fixed-Time” exposure with the extended dynamic range of the “Random Access Integration” algorithms described above, allowing for 107 dynamic range (24-bits) on a full-frame image without compromising precision.
